Substation Automation:
SCADA & Protection Relay

End-to-end solutions — from architecture design and cubicle manufacture to site commissioning and operator training.

Design & Cubicle Manufacture

01

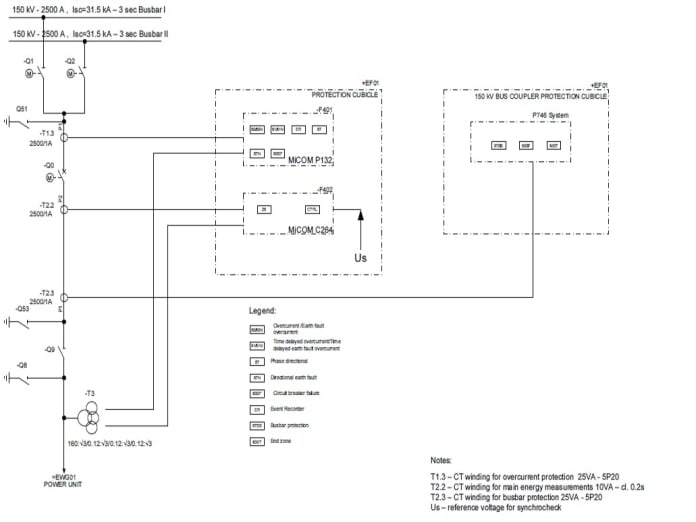

Basic Design
🏗️

Basic Design

System architecture definition, automatic control functions, logic & interlocks, alarm hierarchies, and operator interface design — built around each substation's specific requirements.

Phase 01 · Architecture

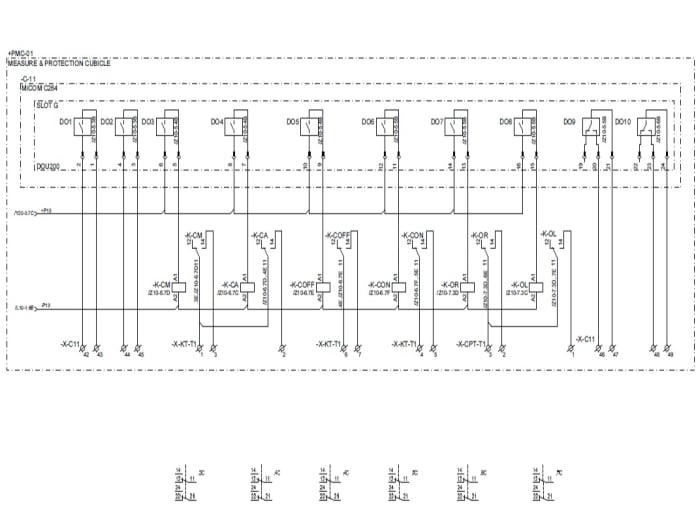

Detail Design
📐

Detail Design

Cubicle-level engineering covering I/O allocation, binary and analog signal mapping, and full communication interfaces with field equipment and remote control centers.

Phase 01 · Engineering

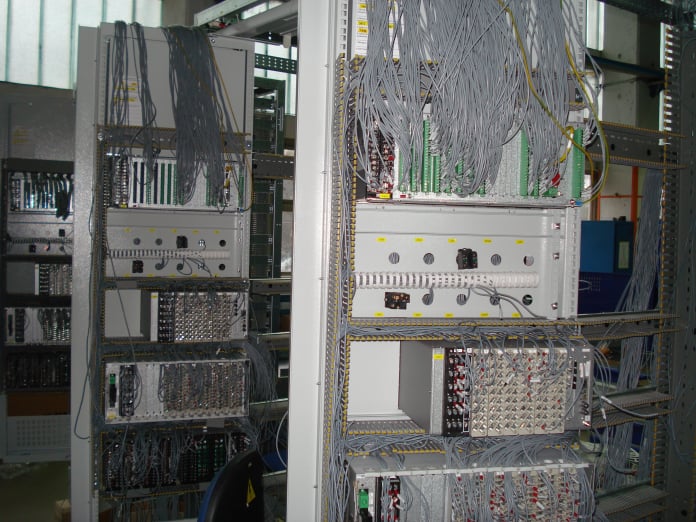

Cubicle Manufacture
⚙️

Cubicle Manufacture

Integration of SCADA hardware, protection relays and auxiliary equipment into custom-built cubicles, carried out in partnership with certified local integrators.

Phase 01 · Manufacturing

Configuration & Testing

02

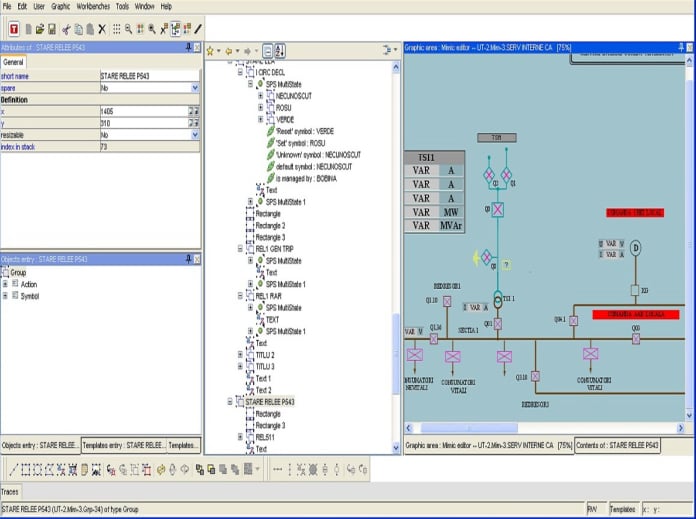

SCADA Configuration
🖥️

SCADA Configuration

Full system configuration including network topology, control functions, interlocks and logic schemes, alarm and event management, and mimic/HMI interface setup.

Phase 02 · Configuration

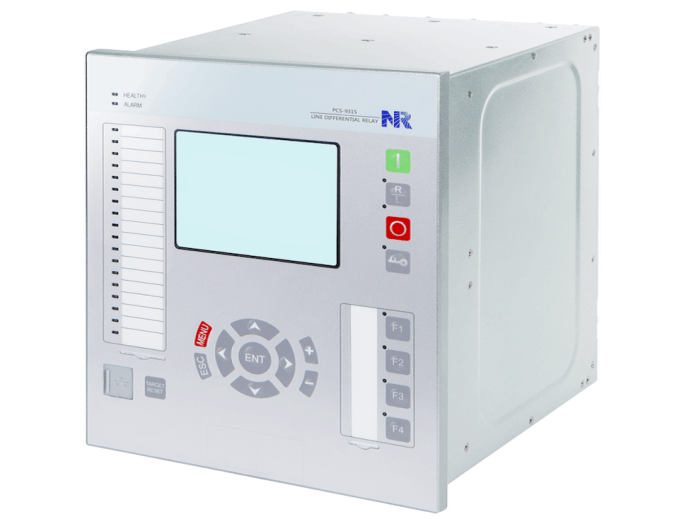

Protection Relay Setting
🛡️

Protection Relay Setting

Relay configuration and testing based on customer-approved setting files. Includes communication interface setup (IEC 61850, MODBUS, DNP3) and inter-relay coordination verification.

Phase 02 · Protection

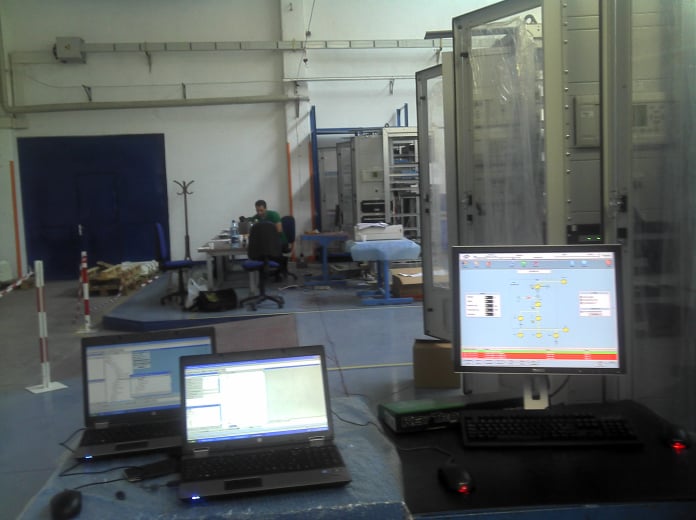

Factory Acceptance Test
✅

Factory Acceptance Test

Comprehensive FAT on a dedicated platform that replicates the real substation environment. All functions, signals and interlocks verified using I/O test devices and injection equipment.

Phase 02 · FAT

Site Acceptance Testing & Operator Training

03

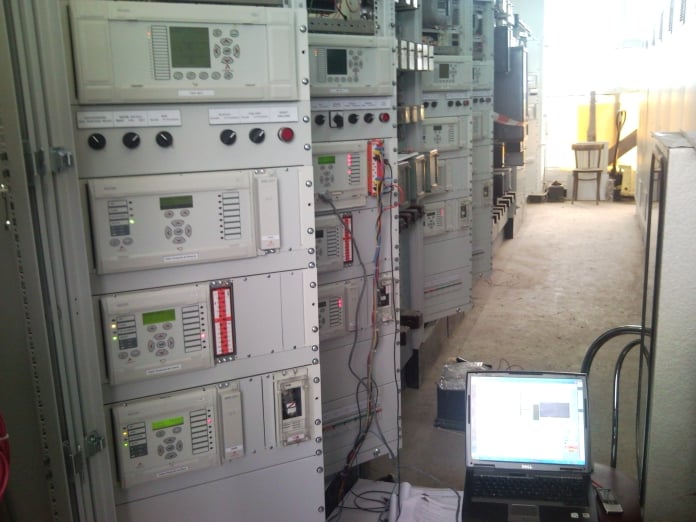

Site Acceptance Test
📋

Site Acceptance Test

On-site circuit testing, complete binary & analog signal path verification, BCU and protection relay validation, SCADA function checks, and formal test report issuance.

Phase 03 · SAT

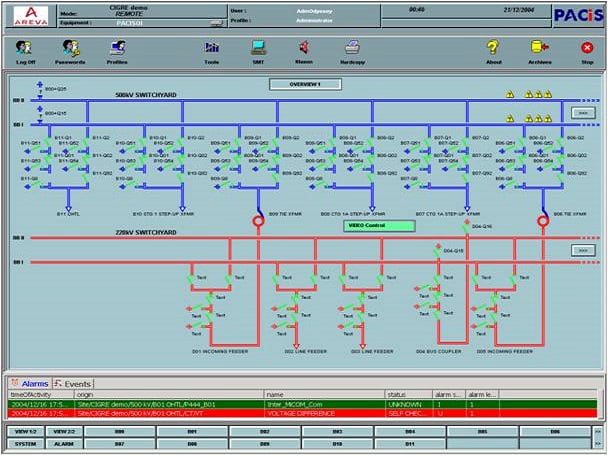

System Energization
⚡

System Energization

On-site technical support during live energization — real data acquisition, operator interface validation, alarm and event log accuracy confirmation, and post-energization fine-tuning.

Phase 03 · Commissioning
Operator Training
🎓

Operator Training

Hands-on site training for operations personnel covering day-to-day SCADA use and diagnostics. Dedicated sessions for protection relay setting, testing procedures and maintenance.

Phase 03 · Training
